The TH212

Lightweight and portable with massive punch

th212 header image

TH212

The TH212. For any application requiring massive punch from a lightweight or portable box

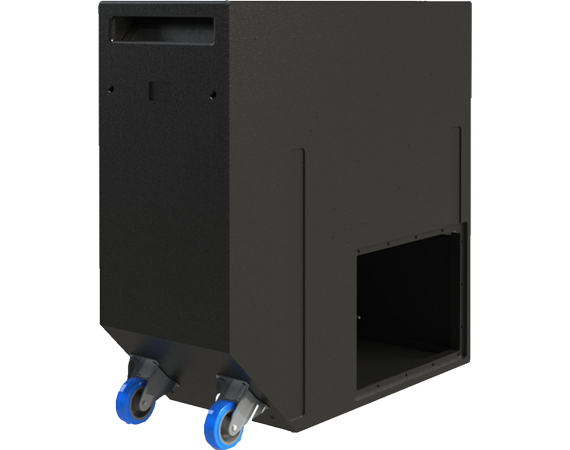

The interlocking skids on the TH212 allow it to be stacked into directional arrays. Removable covers allow two choices for the location of the acoustical output based on the installation orientation you choose. The TH212 is available in three models: the install model with a variety of fly-points for permanent installation, the touring model with handles and wheels, and a self-powered model with DSP.

Small box with a huge sound

Specifications

  • operating
    frequency range
    38 Hz - 200 Hz +/- 3 dB
    31 Hz – 200 Hz -10 dB
  • continuous output
    133 dB SPL
  • peak output
    139 dB SPL
  • sensitivity
    104 dB SPL (2.83 Volts into rated Z, at 1 meter), measured in half space
  • driver complement
    two 12" long excursion woofers
  • dimensions
    36 x 15 x 36 inches
  • weight
    142 lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    1400 W continuous, 2800 W program
