The SH46

A true LOUD speaker in a compact package

sh46 header image

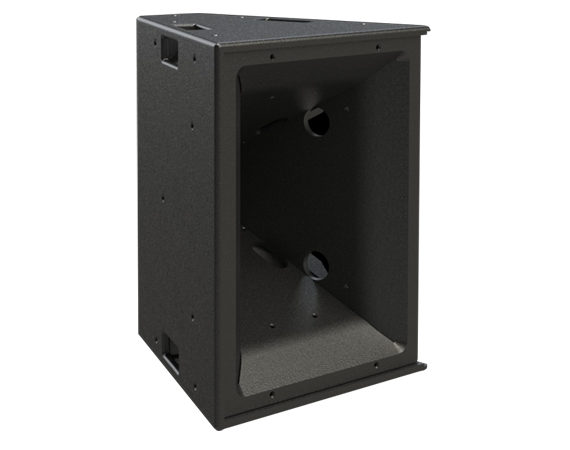

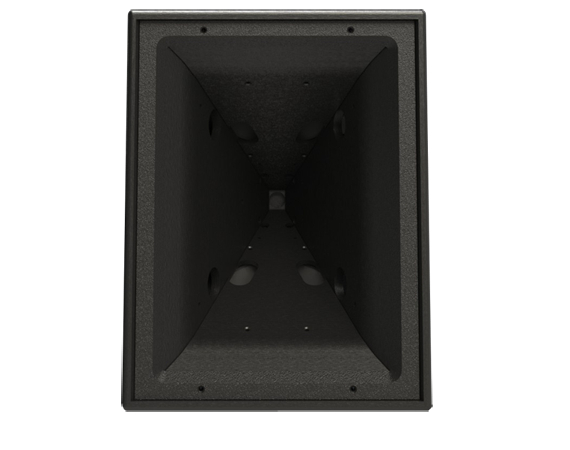

SH46

The SH46, 135 dB SPL, 40 by 60 coverage

Like all our Synergy Horns, the SH46 has it all; great fidelity, pattern control and impressive magnitude/phase response. The SH46 has the added benefit of truly modular array-ability. It has a sensitivity of 106 dBSPL and can handle 1400 watts continuous! The SH46 can be installed or the touring model is outfitted with handles for easy transport.

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

A truly "LOUD" speaker in a compact package

Specifications

  • coverage Pattern
    40˚ horizontal x 60˚ vertical
  • operating
    frequency range
    71 Hz - 14.5 kHz +/- 3dB
    58 Hz - 16 kHz -10dB
  • continuous output
    135 dBSPL
  • peak output
    141 dBSPL
  • sensitivity
    106 dB SPL (2.83 Volts into rated Z, at 1 meter)
  • driver complement
    two long excursion 12" woofers
    Four 4" midrange
    one 1.4" HF
  • dimensions
    29 x 22.3 x 22.7 inches
  • weight
    118 lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    1400W continuous, 2400W program
