Our SH 96HO was initially designed as a request of commercial theatre; this 4-way powerhouse has 12 drivers in a single horn!

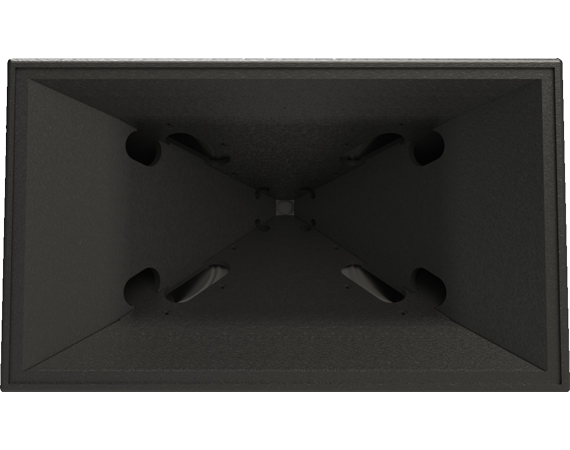

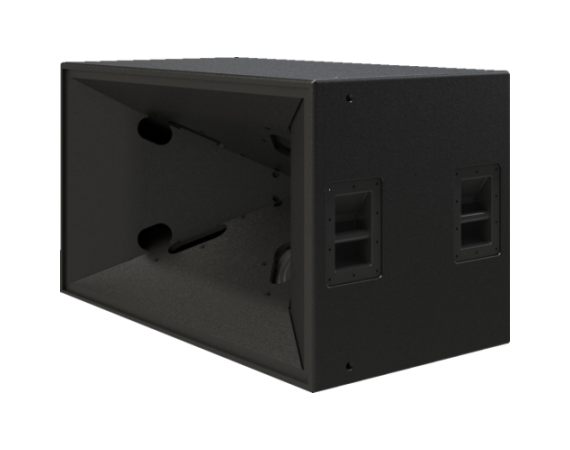

The SH96HO
If the SH96 goes to “10″ the HO goes to “11″ !
The SH96, just more!
Specifications
- coverage Pattern
90 horizontal x 60 vertical
- operating
frequency range66 Hz - 22 kHz +/- 3dB - continuous output
136 dbSPL
- peak output
142 dBSPL
- sensitivity
104 dBSPL (2.83 Volts into rated Z at 1 meter) Measured in free space.
- driver complement
Woofers four x 15"
Mid Range Six x 4"
High Freq, One x two-way compression driver - dimensions
26.5 x 45 x 25 inches
- weight
220 lbs.
- Rated Impedance
8 ohms
- Power Rating
2,800 W
