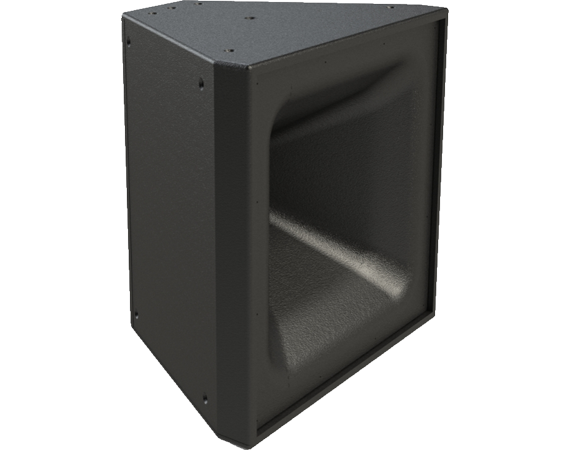

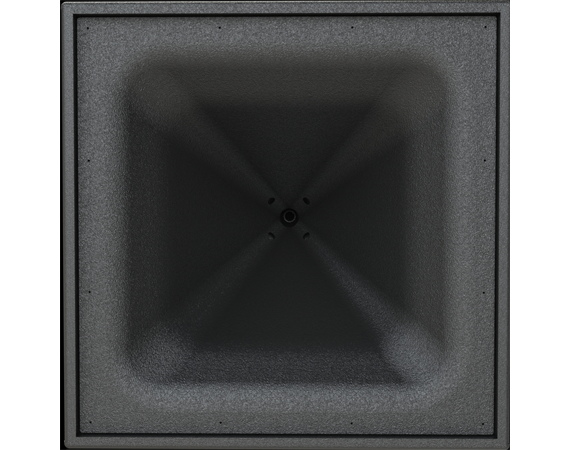

The SM60M

60˚ compact mid–high box

sm60m header image

SM60M

The SM60M is perfect for mains with bass arrays, fills and distributed audio applications

The SM60M is a mid-high version of the SM60F without the dual 8" low frequency drivers. The SM60M is designed for use with a subwoofer and works very well with the THmini. Available in install version only.

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

Pair with a TH Mini for a powerful portable system

Specifications

  • coverage Pattern
    60˚ horizontal x 60˚ vertical
  • operating
    frequency range
    270 Hz - 15 kHz +/- 3dB
    178 Hz - 24 kHz - 10dB
  • continuous output
    124 dB SPL
  • peak output
    130 dB SPL
  • sensitivity
    100 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    One 5" Coaxial
  • dimensions
    20.6 x 20.6 x 16.3 inches
  • weight
    45 lbs
  • Rated Impedance
    8 Ohms
  • Power Rating
    250 W continuous, 500 W program
