The SH Mini

Small stature, huge fidelity

sh mini header image

SH Mini

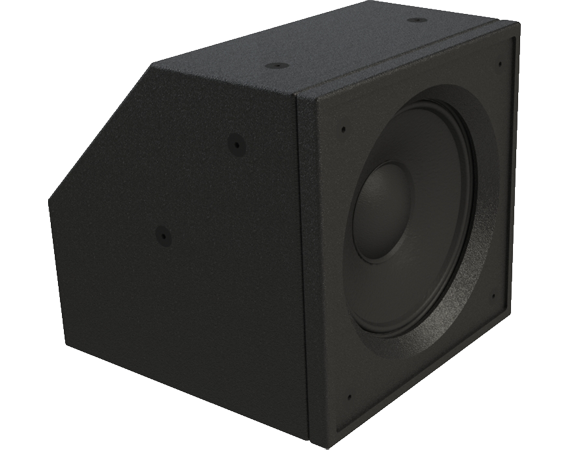

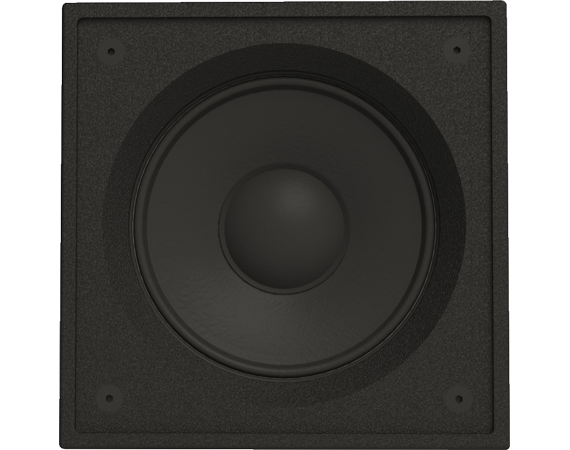

The SH Mini is a full range compact loudspeaker designed for applications requiring wide coverage

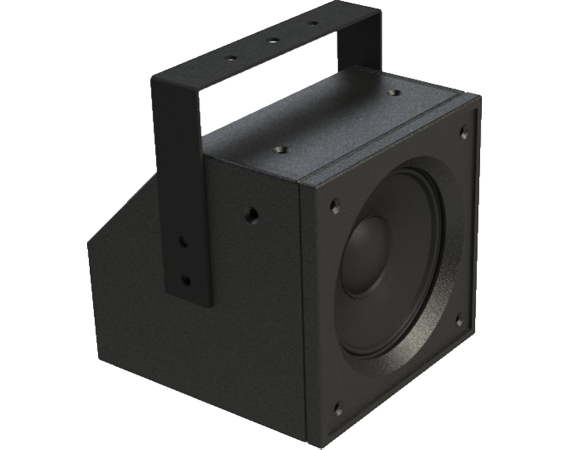

With its ultra compact size, it also can be used as a very compact floor monitor with exceptional clarity. Integrated fly points are standard and flexible mounting can be achieved with the optional U bracket.

tiny size, HUGE sound

Specifications

  • coverage Pattern
    100˚ conical
  • operating
    frequency range
    125 Hz - 18 kHz +/- 3dB
    88 Hz - 20 kHz - 10dB
  • continuous output
    117 dB SPL
  • peak output
    123 dB SPL
  • sensitivity
    88 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    one 8" coaxial
  • dimensions
    10 x 10 x 10.5 inches
  • weight
    22.5 lbs
  • Rated Impedance
    8 Ohms
  • Power Rating
    200 W continuous, 400 W program
