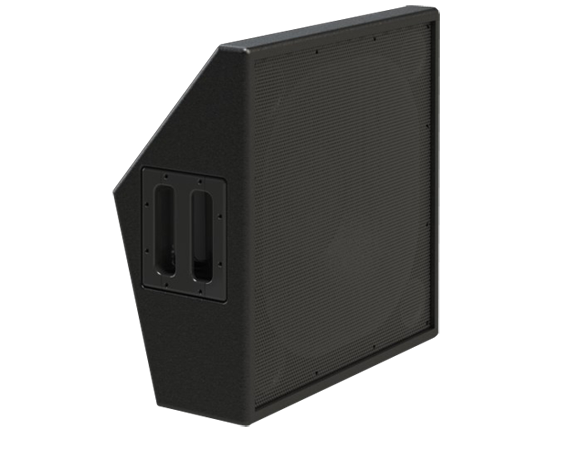

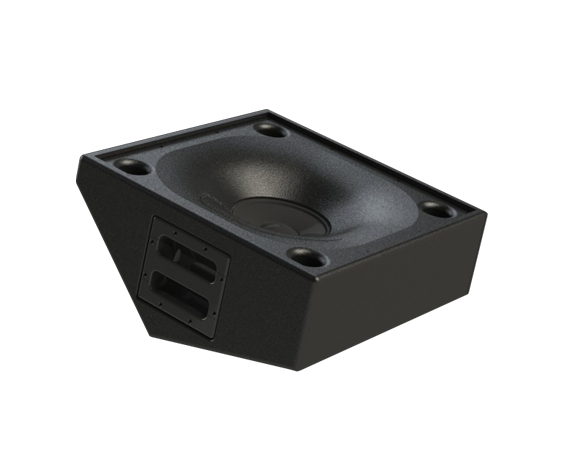

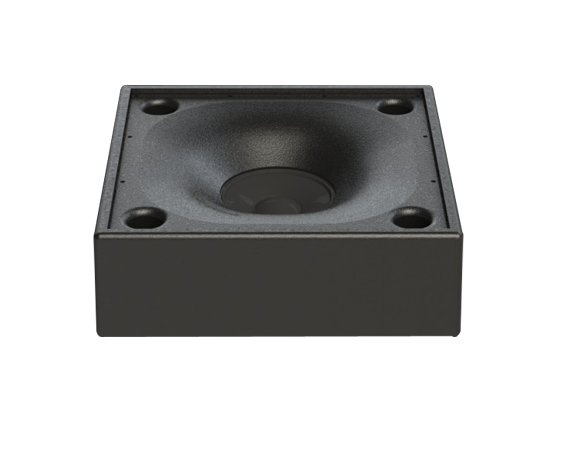

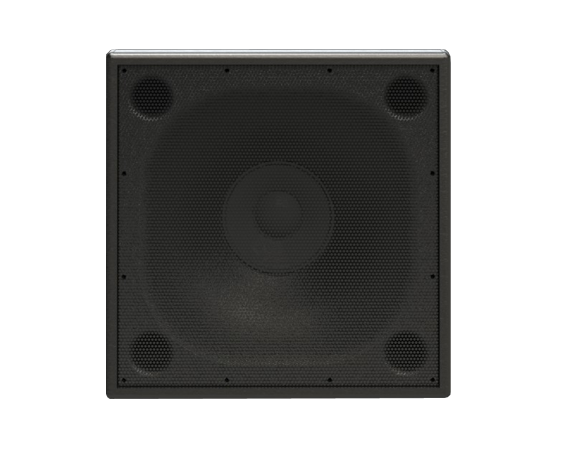

The SM100M

Low profile wedge style monitor

sm100m header image

Low profile wedge style monitor

Specifications

  • coverage Pattern
    110˚ Conical
  • operating
    frequency range
    70 Hz - 20 KHz +/- 3dB
    50 Hz - 24 Khz - 10dB
  • continuous output
    120 dB SPL
  • peak output
    126 dB SPL
  • sensitivity
    95 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in half space
  • driver complement
    One 8" coaxial
  • dimensions
    20.5 x 20.5 x 12 inches
  • weight
    41 lbs
  • Rated Impedance
    8 ohms
  • Power Rating
    300 W continuous, 600 W Program
