The SM100B

A tapped horn wrapped around the SM100

sm100b header image

SM100B

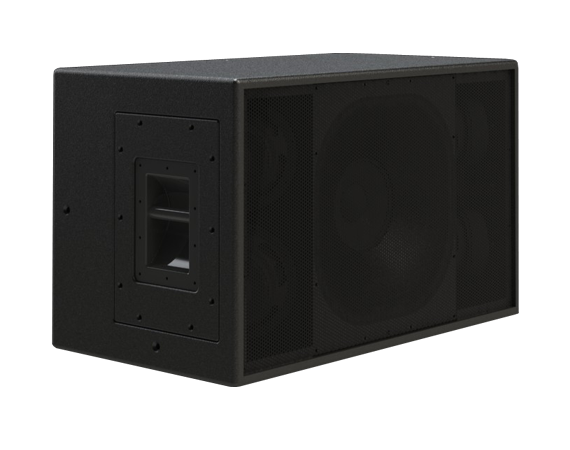

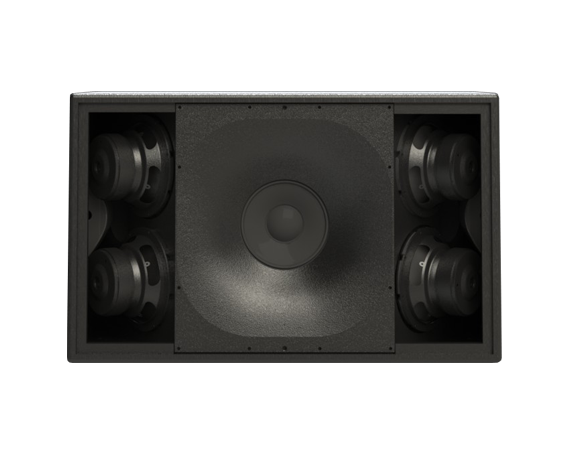

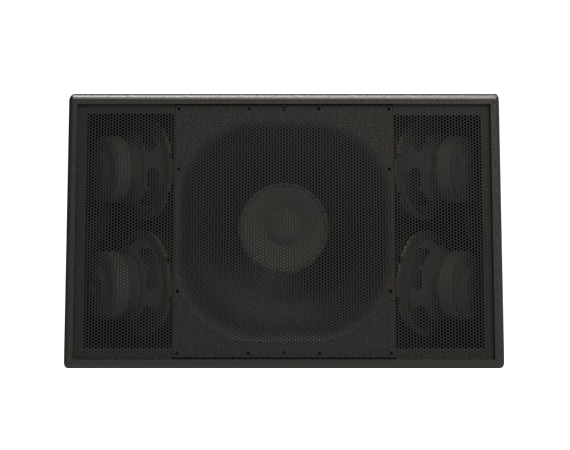

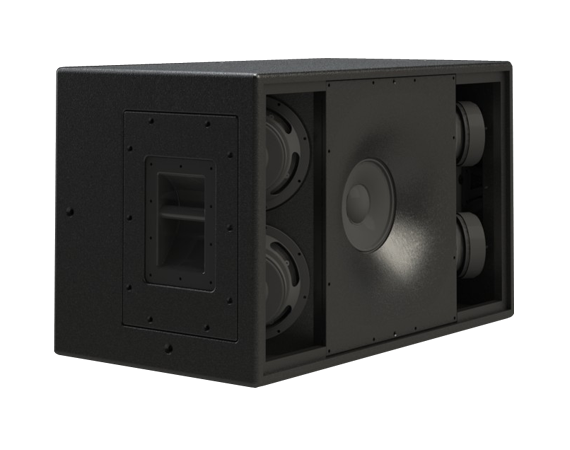

The Danley SM100B provides the additional power of a tapped horn wrapped around the high fidelity and incredible pattern control of an SM100

With its tight, low-end response, one loudspeaker per side (with or without subwoofers) will do an amazing job of covering a substantial seating area. The Danley SM100B is available for permanent installation or the touring model is ideal for transport and set-up by a one man crew.

A truly amazing one box solution

Specifications

  • coverage Pattern
    110 Conical
  • operating
    frequency range
    50Hz-17 kHz +/-3 dB
  • continuous output
    124 dB SPL
  • peak output
    130 dB SPL
  • sensitivity
    98 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    four 8" long excursion woofers
    one 8" coaxial
  • dimensions
    33.5 X20.5 X 19 inches
  • weight
    135 Lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    800W continuous, 1600W program
