The SM LPM

Low profile monitor

sm lpm header image

SM LPM

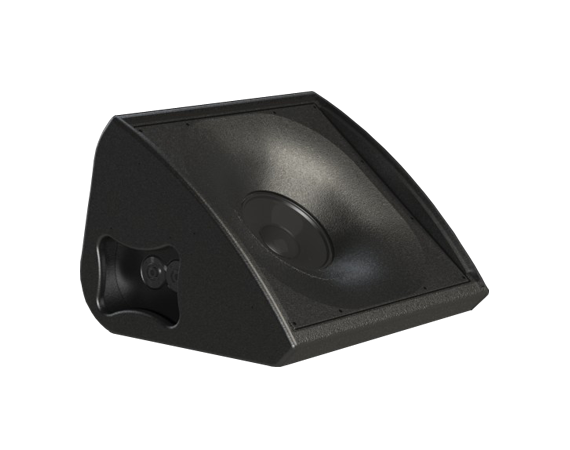

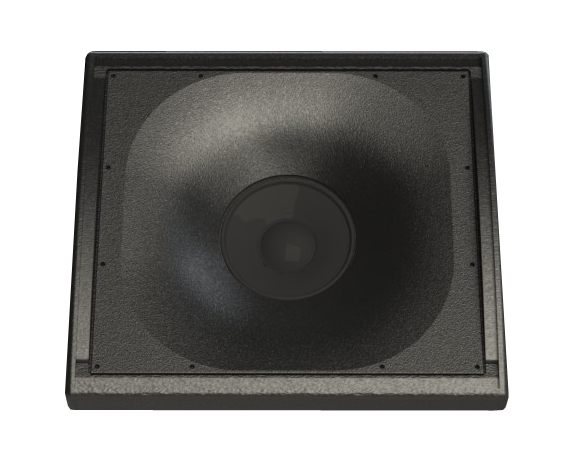

The Danley SM LPM is a wide dispersion fully horn-loaded monitor loudspeaker

Due to the large horn mouth, the Danley SM LPM offers substantial directivity with front to back rejection and high gain before feedback. High frequencies are very smooth throughout the coverage pattern and there is no beaming. The SM LPM sets a new benchmark in floor monitor loudspeakers. It is provided with 2 NL4MP connectors contained within each recessed handle.

Low Profile Stage Monitor

Specifications

  • coverage Pattern
    110˚ conical
  • operating
    frequency range
    60 Hz- 20 kHz +/- 3dB
    52 Hz- 24 kHz - 10dB
  • continuous output
    120 dB SPL
  • peak output
    126 dB SPL 1W/1M
  • sensitivity
    95 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in half space
  • driver complement
    Single 8" coaxial
  • dimensions
    13.6 x 21.5 x 18 inches
  • weight
    41 lbs
  • Rated Impedance
    8 Ohms
  • Power Rating
    300 W continuous, 600 W program
