The SH96

11 Drivers, 1 Horn!

sh96 header image

SH96

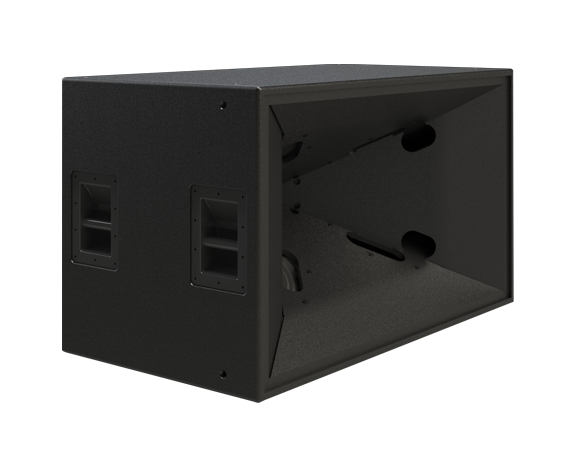

The SH96 is available in a touring or installed version

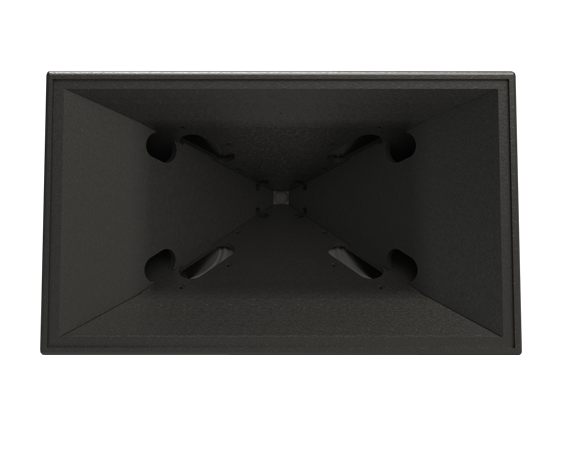

Initially designed at the request of a commercial theatre, the SH96 is a 3-way powerhouse that features four 15" drivers, six 4" mid-range drivers and a 1.4" high frequency driver—that makes 11 drivers coupled to a single horn! The SH96 has a 90° x 60° beamwidth, and a sensitivity of 101 dBSPL. Available in both touring and install versions.

Single box solution for high output and wide coverage

Specifications

  • coverage Pattern
    90˚ horizontal x 60˚ vertical
  • operating
    frequency range
    50 Hz - 16 kHz +/-3dB
  • continuous output
    133 dB SPL
  • peak output
    139 dB SPL
  • sensitivity
    101 dB (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    four 15" woofers
    six 4" Mid Range
    one 1.4" High Freq
  • dimensions
    26.5 x 45 x 25 inches
  • weight
    215 lbs
  • Rated Impedance
    8 Ohms
  • Power Rating
    1400 Watts Continuos
    2800 Watts Program
