SH64

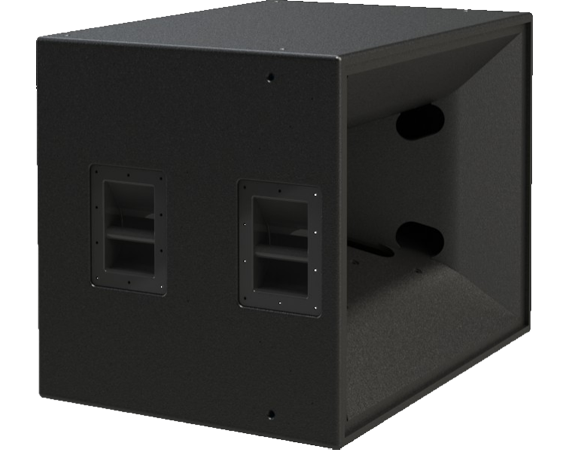

The SH64 is a standalone full range box

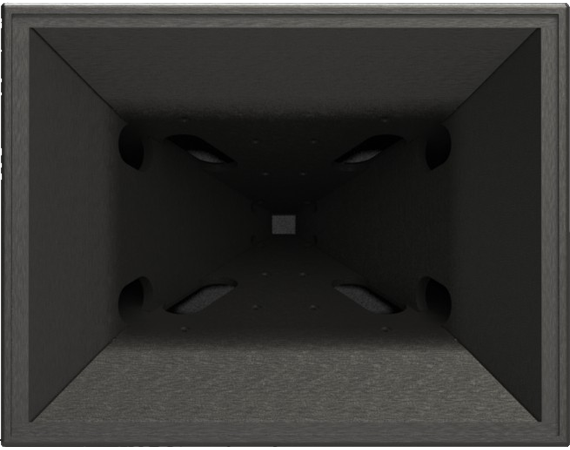

Great fidelity, low frequency pattern control and impressive magnitude/phase response. The SH64 is a 3-way powerhouse with 9 drivers in a single horn providing high SPL and low distortion sound. Available in both install or touring versions.

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

TA single box solution for high output, narrower coverage requirements

Specifications

  • coverage Pattern
    60˚ horizontal x 40˚ vertical
  • operating
    frequency range
    65 Hz - 16 kHz +/- 3 dB
    43 Hz - 20 kHz -10 dB
  • continuous output
    135 dB SPL
  • peak output
    141 dB SPL
  • sensitivity
    103 dB (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    Four 15"woofers, four 4" MR, one 1.4" HF
  • dimensions
    26.5 x 34 x 25 inches
  • weight
    197 lbs
  • Rated Impedance
    8 Ohms
  • Power Rating
    1400W continuous, 2800W program
